Architecture

NoETL uses a server-worker architecture for distributed workflow execution.

Component Overview​

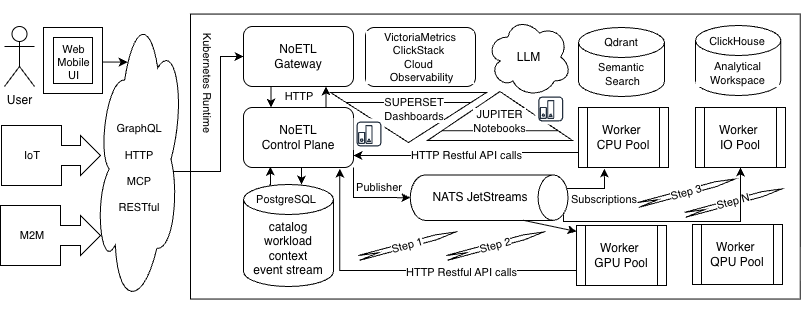

NoETL Components

Components​

Gateway​

Rust-based API gateway for external clients:

  • Exposes GraphQL API for playbook execution
  • Provides REST API for Auth0 authentication (/api/auth/*)
  • Session validation middleware with EHDB K/V caching
  • Pure gateway design - no direct database connections
  • All data access through Control Plane API
  • EHDB K/V for fast session lookups, served by the writer's KV face
  • Live updates stream from the EHDB event feed

Session Caching: Gateway checks EHDB K/V for cached sessions before calling auth playbooks. On cache miss, playbooks validate from PostgreSQL and refresh the cache. Both gateway buckets — sessions and requests (the latter backing every SSE route) — moved from NATS K/V onto the EHDB KV face with the NATS removal.

NoETL Control Plane​

Central coordination service:

  • Exposes REST APIs for catalog, credentials, executions, and events
  • Schedules and supervises workflow executions
  • Publishes task notifications to the EHDB feed (L1 command bus)
  • Receives execution events from workers
  • Manages retries and backoff policies
  • Reconstructs workflow state from the projected execution read-model, folded from EHDB's authoritative event log
  • Used by CLIs, UIs, and integrations

Event Store and Projections​

NoETL's authoritative event log is EHDB (the Event Horizon Database), an Arrow-native storage substrate purpose-built for the NoETL platform. EHDB's event-log engine has been primary — serving production writes and reads — since 2026-08-13, replacing PostgreSQL as the append-only source of truth for execution history:

  • The event log is EHDB's source-of-truth engine: append-only, single-writer-per-shard, with a total global_sequence order. This is the engine every projection folds from.
  • The projection engine folds the event log into read models — executions, event read-models, and analytical/vectorized retrieval views. Projection is currently still served from PostgreSQL (noetl.event and its derived tables) while the equivalent EHDB projection engine runs in shadow mode alongside it, ahead of its own cutover.
  • Replay validation reads the event log and checks projected runtime state without depending on worker memory — the same replay guarantee as before, now backed by EHDB rather than PostgreSQL for the raw log.
  • This is exposed read-only through the noetl server API, under /api/ehdb/*, and through the noetl ehdb query CLI — a secret-free, bounded, platform-only query surface. The server stays control-plane-only (it never opens EHDB's data-plane storage itself); raw per-tier reads are relayed to the worker's data-plane query port.

EHDB is designed to progressively absorb the platform roles currently split across PostgreSQL, NATS JetStream, and external object stores — event log, projection, KV, object, and vector are its five engines. The event-log and command-bus engines (below) are cut over in production today; projection, KV, object, and vector engines are mid-migration (shadow-mirrored, not yet authoritative). See noetl/ehdb and its wiki for the live, continuously-updated cutover status per engine — this page describes the architectural shape, not a point-in-time rollout snapshot.

The DSL and playbooks stay backend-neutral throughout this migration; infrastructure configuration selects the adapters, not the workflow definition.

Worker Pools​

Stateless background executors:

  • Subscribe to the EHDB feed (L1 command bus) for task notifications
  • Retrieve task details via Control Plane API
  • Run workflow steps and tools (HTTP, SQL, Python, etc.)
  • Report events back via Control Plane API
  • Scale horizontally based on load
  • Isolated execution environments

EHDB Feed (L1 Command Bus)​

EHDB's feed engine is the production command bus for task distribution, replacing NATS JetStream in this role since 2026-07-27:

  • Control Plane publishes task notifications to the EHDB feed
  • Workers claim and acknowledge messages through durable, per-shard delivery
  • Messages contain pointers to Control Plane API for task details, not the full payload
  • Durable subscriptions and exactly-once claim semantics ensure no task loss
  • Supports multiple worker pools and load balancing, and has measured materially faster dispatch latency than the NATS baseline it replaced

NATS JetStream has since been removed as an internal transport (noetl/ai-meta#212); there is no NATS rollback path and no NATS deployment in production. The EHDB feed is the task-distribution system of record.

NATS survives in NoETL only as something playbooks talk to: the nats tool kind and the subscription tool's NATS source. The local kind bootstrap still deploys a NATS JetStream instance for those.

Result References and Shared Cache​

Workers do not push large payloads through the event stream. Task outcomes use a reference-first model:

  • Small values may be inline.
  • Larger results are stored behind a ResultRef / TempRef with a logical noetl://... URI.
  • The durable reference remains the source of truth and can resolve from KV, disk, S3-compatible storage, GCS, or PostgreSQL depending on tier and runtime configuration.
  • Tabular cursor-frame payloads can be serialized as Apache Arrow IPC (application/vnd.apache.arrow.stream).
  • Co-located producer/consumer workers can attach to an optional same-node shared-memory ipc hint on the reference. This is Tier 1.5: a best-effort acceleration path, not authoritative state.
  • If the IPC hint is missing, expired, evicted, or belongs to a different node, resolution falls back to the durable ResultRef.

The live Phase 3 IPC proof validated this path end to end: a cursor frame wrote Arrow IPC bytes, emitted an IPC hint, read via shared memory, evicted the hint, then successfully read the same rows through durable fallback.

Catalog & Credentials​

Storage for workflow definitions:

  • Catalog: Playbooks, versions, schemas, tool definitions
  • Credentials: Connection configs and tokens with scoped access

Event Bus and Telemetry​

Observability infrastructure:

  • Every step emits structured events (start/finish/errors, durations)
  • Events exported to analytics backends (ClickHouse, VictoriaMetrics)
  • Vector stores (Qdrant) for AI-assisted optimization and semantic search

Storage/Compute Integrations​

Connectors for external systems:

  • Warehouses: DuckDB, PostgreSQL, ClickHouse, Snowflake
  • Files/Lakes: GCS, S3, local filesystem
  • Vector DBs: Qdrant
  • External services: HTTP APIs

Language Model Strategy: Open-Source SLMs with Hybrid LLM Escalation​

NoETL treats model selection the same way it treats storage or compute backends: as an explicit, swappable workload configuration, not a hardcoded dependency.

  • Domain-specific small language models (SLMs) run first. Workloads default to a local, open-source SLM served via Ollama (gemma3:4b today) tuned for a specific domain task. The pattern is proven for self-troubleshoot diagnosis and extends the same way to other domain-centric playbooks (risk scoring, healthcare cohort summarization, observability triage, and similar). Small models keep inference local, fast, and low-cost, and they run on commodity hardware — a laptop, a small kind cluster, or a memory-constrained worker node.
  • Escalation is explicit and hybrid, never silent. When a local SLM's confidence falls below a workload-defined threshold, NoETL escalates through the same MCP contract to either a larger local open-source model (qwen3:32b) or a managed cloud LLM backend (Vertex AI/Gemini, OpenAI, Claude). Backend selection is always explicit per deployment or per workload — NoETL does not auto-detect an environment and silently switch tiers.
  • The backend is a pluggable MCP contract, not a code branch. Every compatible tier speaks the same JSON-RPC MCP chat_completion interface: diagnose_execution -> tool.kind=mcp -> mcp/<backend> -> chat_completion. The same playbook runs unmodified against a laptop's local Ollama pod or a production Vertex AI backend by changing triage_mcp_server / triage_model, not the workflow definition.

See Triage Model Selection and Vertex AI Triage Backend for the concrete open-source-SLM-first, hybrid-escalation pattern running in production today, including the local-tier-to-cloud-tier mapping (gemma3:4b → gemini-2.5-flash, qwen3:32b → gemini-2.5-pro).

Quantum Computation Workloads​

NoETL's Petri-net-inspired token model (see Design Philosophy — Petri Net-Inspired State & Parallelism) extends to quantum computation without a special case: a quantum job's output — measurement bitstrings, shot counts, correlation estimates, or derived embeddings — is a step result like any other, so it flows through the same replayable, event-sourced execution graph as classical steps.

A typical pattern:

  1. A step submits a quantum circuit through a provider tool — the IBM Quantum Runtime API, or an NVIDIA cuQuantum/Qiskit Aer simulator — as shown in the Quantum Networking Runner example.
  2. The provider's raw output becomes that step's result token, subject to the same Result References and Shared Cache model as any large payload.
  3. Downstream steps route that token to GPU or CPU worker pools (see Resource Pools) for classical post-processing: error mitigation, feature extraction, or training and inference against a domain-specific model.
  4. Because the token is durable and replayable, customers can compose playbooks that train their own models on accumulated quantum-workload output — the same compositional pattern used for any other domain data product in NoETL.

For the dedicated quantum-orchestration layer — circuit design, provider routing, and quantum-specific scheduling beyond what a NoETL playbook step covers directly — see saqbit — quantum orchestration. NoETL's role is to make quantum job output a first-class, replayable token in the same execution graph as every other domain workload; saqbit is the dedicated quantum-orchestration layer NoETL integrates with for the quantum-specific parts of that pipeline.

Data Flow​

┌─────────────┐     ┌─────────────┐     ┌───────────────┐     ┌─────────────┐
│   Web UI    │────▶│   Gateway   │────▶│ Control Plane │────▶│  EHDB Feed  │
│  (GraphQL)  │     │   (Rust)    │     │   (FastAPI)   │     │(L1 cmd bus) │
└─────────────┘     └─────────────┘     └───────┬───────┘     └──────┬──────┘
                                                │                    │
┌─────────────┐                                 │              ┌─────▼─────┐
│   CLI/API   │─────────────────────────────────┘              │  Workers  │
│  (Direct)   │                                 │◀─────────────│ (Execute) │
└─────────────┘                                 │  (events)    └───────────┘
                                                ▼
                                        ┌─────────────┐
                                        │    EHDB     │
                                        │ (Event Log) │
                                        └─────────────┘
  1. Web UI sends GraphQL requests to Gateway
  2. Gateway authenticates and forwards to Control Plane API
  3. CLI/API can also call Control Plane directly
  4. Control Plane validates, creates execution, publishes task to the EHDB feed (L1 command bus)
  5. Workers receive an EHDB feed message with task pointer
  6. Workers fetch task details from Control Plane API
  7. Workers execute steps and report events to Control Plane API
  8. Control Plane appends events to EHDB's authoritative event log (the PostgreSQL-backed projection/read-model is folded from this log; see Event Store and Projections)
  9. Control Plane monitors events to determine next steps in workflow
  10. Large results are stored by reference; events carry ResultRef metadata
  11. Cursor frames may attach an optional Arrow IPC shared-memory hint for same-node consumers, while durable storage remains the fallback

Database Schema​

PostgreSQL still holds NoETL's control-plane metadata, and — during the ongoing EHDB migration — the projection/read-model view over execution history:

TablePurpose
catalogPlaybook definitions (path, version, content)
eventExecution read-model (status, results, errors), folded from EHDB's authoritative event log
credentialEncrypted credentials
keychainRuntime token cache with TTL
transientExecution-scoped variables
runtimeWorker pool and server registration
scheduleCron/interval scheduled playbooks

The raw, source-of-truth event log itself is EHDB, not this event table — see Event Store and Projections. This table remains the live projection/read-model source while EHDB's own projection engine runs in shadow mode ahead of its cutover.

Control loop: Control Plane analyzes the projected execution state to reconstruct workflow progress and determine next steps, then publishes tasks to the EHDB feed.

Communication Patterns​

Control Plane → EHDB Feed → Worker​

Task distribution via EHDB's L1 command bus (see EHDB Feed (L1 Command Bus)):

  1. Control Plane publishes task notification to the EHDB feed
  2. Message contains execution_id and task pointer (not full payload)
  3. Worker claims the message, acknowledges after processing
  4. Worker calls Control Plane API to get full task context
  5. Worker executes and reports events to Control Plane API

NATS JetStream previously served this role and has been removed (noetl/ai-meta#212).

Event-Driven State​

All execution state is persisted as events in EHDB's authoritative event log:

  • Server reconstructs workflow state from the projected execution read-model (currently PostgreSQL, folded from the EHDB event log)
  • Determines which steps completed, which are pending
  • Publishes next tasks to the EHDB feed based on workflow graph
  • Enables replay, debugging, and distributed execution

Scaling​

Horizontal Scaling​

  • Workers: Add more worker replicas for throughput
  • Server: Single server coordinates all executions
  • Database: PostgreSQL handles concurrent access to control-plane metadata and the current projection/read-model view; EHDB's event-log engine handles the authoritative event log, single-writer-per-shard with a total order

Resource Pools​

Configure worker pools for different resource types:

  • CPU-intensive workloads
  • GPU workloads (future) — classical ML training/inference, and post-processing of quantum computation results (see Quantum Computation Workloads)
  • I/O-bound operations
  • Quantum workloads — via provider-backed tools (IBM Quantum Runtime API, NVIDIA cuQuantum/Qiskit Aer simulator); see Quantum Networking Runner and saqbit — quantum orchestration for the dedicated quantum-orchestration layer NoETL integrates with
