Message Learning & Event-Driven Orchestration

NoETL implements a message learning architecture for continuous workflow optimization through event-driven feedback loops.

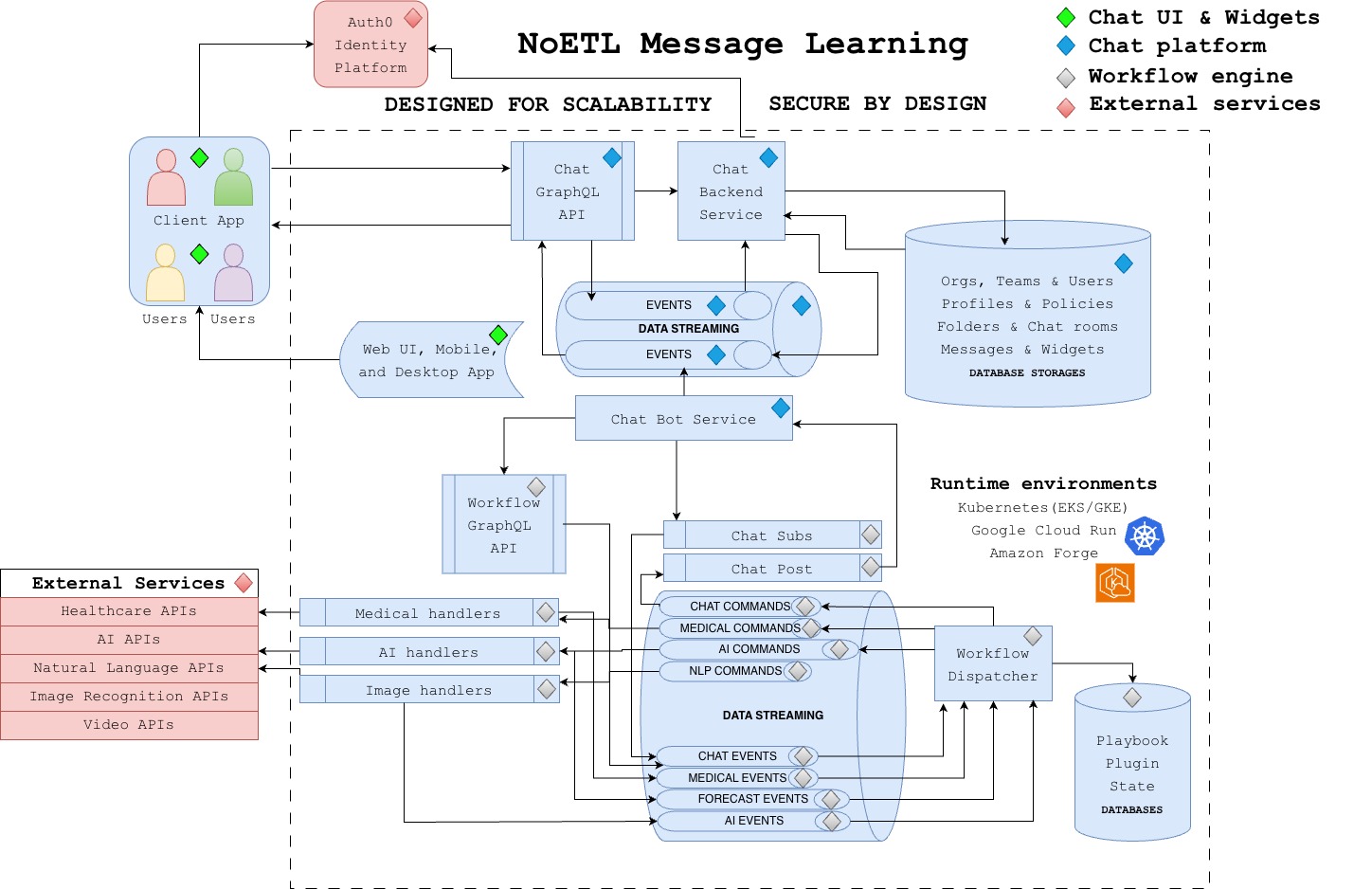

NoETL Message Learning Architecture

Event Learning Concept​

Event learning enables NoETL workflows to improve over time by capturing execution patterns, outcomes, and human decisions as structured events:

  • Execution Events: Every workflow step emits start/finish/error events with timing and metadata
  • Decision Events: Human approvals, overrides, and interventions captured as first-class events
  • Feedback Loops: Downstream system responses fed back into workflow optimization
  • Pattern Recognition: AI models analyze event streams to detect anomalies and suggest improvements

Message Learning Architecture​

The message learning system operates as a control loop:

  1. Business Task Execution: Workflows process domain-specific tasks (data pipelines, ML training, API integrations)
  2. Event Capture: All execution state persisted to event log with full context
  3. Human-in-the-Loop: Decision points where domain experts review, approve, or override automated actions
  4. Learning Layer: Vector embeddings and semantic search enable AI assistants to:
    • Suggest workflow optimizations based on past executions
    • Recommend error recovery strategies from similar failures
    • Auto-tune retry policies and resource allocation
    • Generate new playbooks from natural language descriptions

Control Loop Components​

1. Event Bus (PostgreSQL + ClickHouse)​

All workflow execution state stored as immutable events:

SELECT execution_id, step_name, status, duration_ms, error_message
FROM noetl.event
WHERE playbook_path = 'data/ingestion/daily_load'
ORDER BY created_at DESC;

Events exported to ClickHouse for analytics and AI agent access via MCP server. See Observability Services for more details.

2. Human Decision Points​

Workflows can pause for human review using conditional routing:

workflow:
  - step: validate_data_quality
    tool:
      kind: python
      code: |
        # Check data quality metrics
        result = {"quality_score": 0.85, "anomalies": 12}
    next:
      - when: "{{ validate_data_quality.quality_score < 0.9 }}"
        then:
          - step: await_human_approval  # Pause for review
        args:
          issue: "Data quality below threshold"

  - step: await_human_approval
    tool:
      kind: http
      method: POST
      url: "{{ workflow_approval_service }}/requests"
    # Execution pauses until approval received via callback

3. Feedback Collection​

Capture outcomes and human decisions:

- step: record_decision
  tool:
    kind: postgres
    table: execution_decisions
    data:
      execution_id: "{{ execution_id }}"
      decision_maker: "{{ current_user }}"
      action: "{{ vars.approval_action }}"
      reasoning: "{{ vars.approval_comment }}"
      timestamp: "{{ now() }}"

4. AI-Assisted Optimization​

Vector search over execution history enables:

  • Semantic Playbook Search: Find similar workflows by natural language description
  • Error Resolution: Retrieve past solutions for similar failures
  • Parameter Tuning: Recommend optimal retry policies, timeouts, resource limits
  • Auto-Generation: Create new playbooks from examples and documentation

Example query via ClickHouse MCP:

# Find similar failed executions for error recovery
similar_failures = clickhouse_mcp.query(
    query="""
    SELECT execution_id, playbook_path, error_message, resolution
    FROM observability.noetl_events
    WHERE status = 'failed'
      AND similarity(error_embedding, %(current_error_embedding)s) > 0.8
    ORDER BY created_at DESC
    LIMIT 5
    """,
    params={"current_error_embedding": embed(current_error)}
)

Business Task Automation Patterns​

1. Data Pipeline Orchestration​

ETL/ELT workflows with quality gates:

  • Ingest data from sources
  • Transform and validate
  • Human review for anomalies
  • Load to warehouse
  • Capture feedback for future anomaly detection

2. MLOps Lifecycle​

Model training with experiment tracking:

  • Feature engineering
  • Model training with hyperparameter tuning
  • Validation against production baselines
  • Human approval for deployment
  • A/B test results fed back for next iteration

3. API Integration Workflows​

Multi-step API orchestration with retry logic:

  • Fetch data from external APIs
  • Transform and enrich
  • Conditional routing based on response patterns
  • Adaptive retry strategies learned from past failures

Benefits of Message Learning​

  1. Continuous Improvement: Workflows get smarter over time without code changes
  2. Domain Knowledge Capture: Human decisions preserved as structured data
  3. Explainability: Full audit trail of automated and manual actions
  4. AI-Native: Semantic search and LLM reasoning natively integrated
  5. Resilience: Learn from failures to prevent future issues

Observability Stack Integration​

Message learning leverages NoETL's observability stack:

  • ClickHouse: Event storage and analytics queries
  • Qdrant: Vector embeddings for semantic search
  • NATS: Real-time event streaming for instant feedback
  • VictoriaMetrics: Time-series metrics for performance analysis
  • Grafana: Dashboard visualization of execution patterns

See Observability Services for complete integration details.
